Features & Specifications



Our Features.
  • WCDMA & GSM
  • Use 4G (outstanding coverage).
  • Geo-fence / allowing you to fence off certain areas of the map and be alerted when the tracker enters or leaves the restricted area.
  • SOS emergency call / Thumb sized button allowing urgent call during an emergency case.
  • Remote cut off fuel/power from App or PC
  • Vibration / Over Speed alert / As soon as the device detects any vibration or over speed, it will send alerts to you.
  • Time for Service of the Vehicle, Notification Alerts.
  • Detection for ignition status / notification of the ignition status whenever you need.
  • Build in Microphone / built in microphone for remote listening
  • 12 Months Warranty / You will get a 12 months warranty with the product.
  • Compatible 4G (T4 & DVR Dashcam GPS) Networks

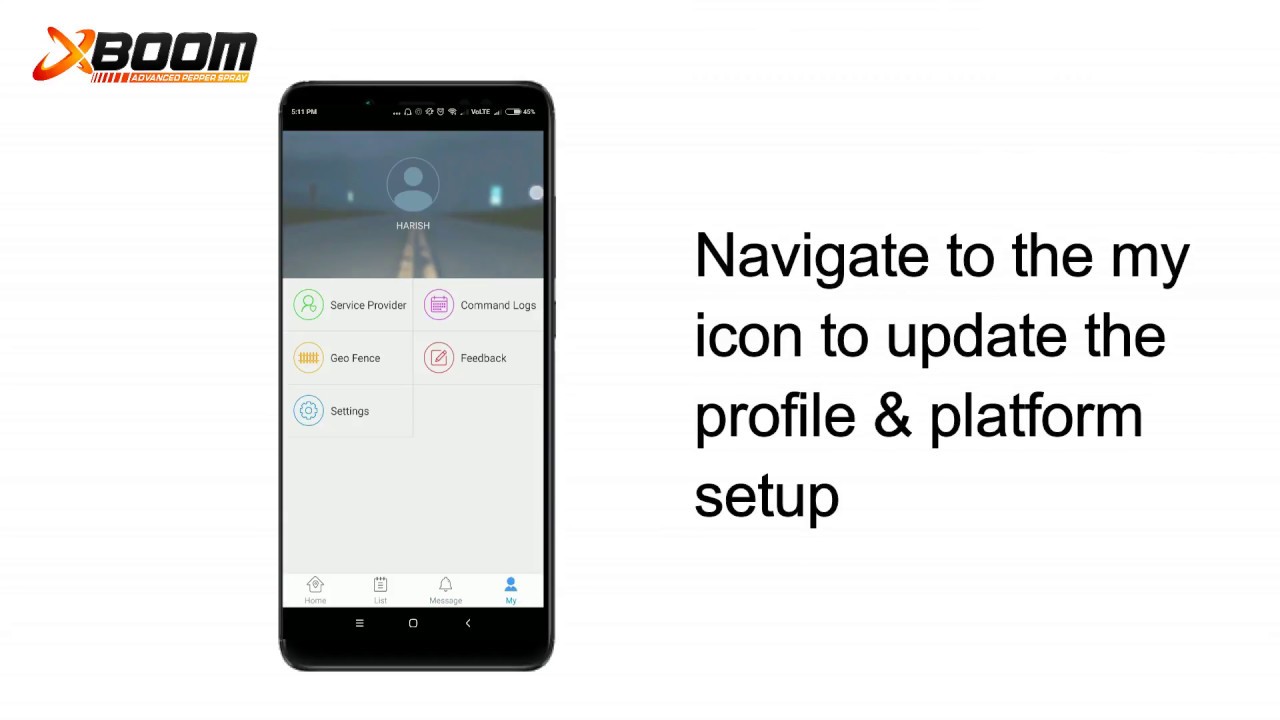

App Setup and Demo Below

Security and Reports
High Security
  • By using the Amazon Cloud Server, we put strong safeguards in place to help protect customer privacy.
  • All data is stored and is strongly encrypted in data centers.

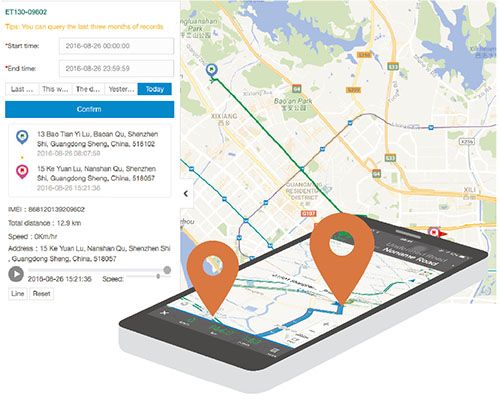

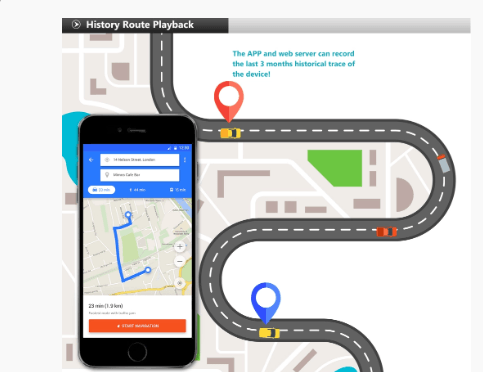

Review Driving History and Key Information
  • Use interactive route replay to review a vehicle’s history and activity throughout the days and more
  • Each trip segment provides you with details about driving time, distance travelled, alerts for unsafe driving, etc
  • Use route replay to improve routing efficiency and resolve customer dispute

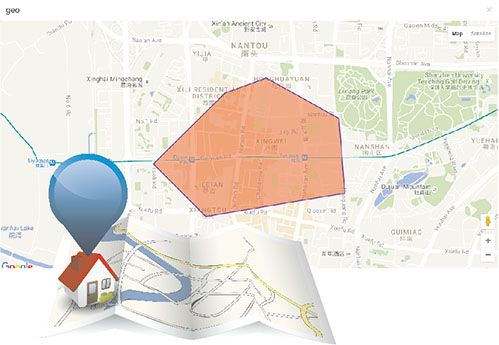

Geo-fences and Landmarks
  • Set up boundaries and landmarks for key locations on the map: client location, headquarters, or employee’s home
  • Create Geo-fences (Max.20 fences for one device) of any size and shape
  • Save workload with one Geo-fence applicable for multiple devices

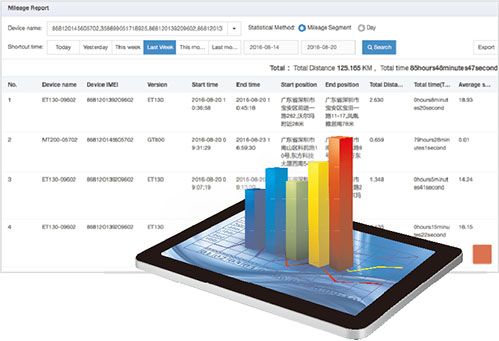

In depth Reports
  • Use our activity report to get fast, in depth data of your fleets performance
  • Evaluate driver performance based on speed, idling, mileage, parking, ACC, and more
  • Uncover inefficiencies, reduce fuel usage, and identify opportunities for savings
  • Down loadable to CVS excel Files
  • Up to six months of data available on demand.

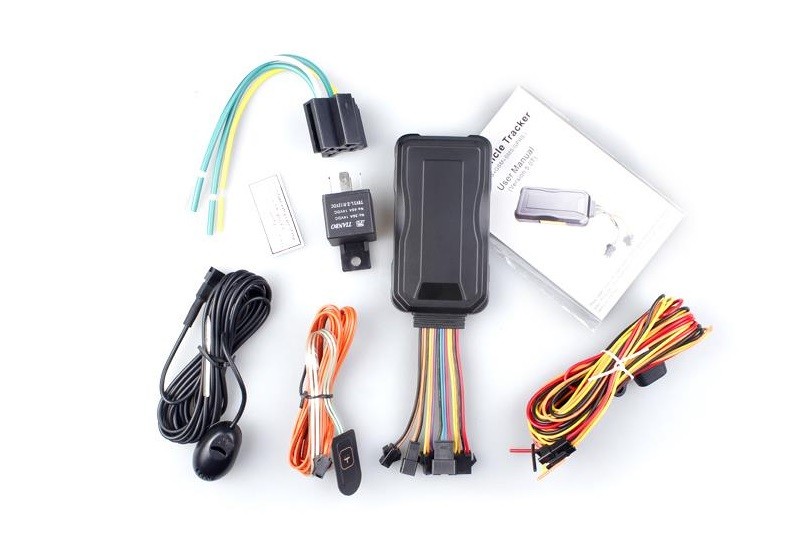

Specifications
  • GPS Tracker
  • GPS positioning time details: Quick Wake up. Cold start 38 sec (open sky) Hot start 2 sec (open sky)
  • GPS Positioning precision – 10 meters:
  • GPS Position updating – Every 10 Seconds – for precise mapping updates.
  • Internal 450mAh Back up / rechargeable battery
  • Remote Engine disable
  • Self Contained antennas
  • 12V -36V Operation
  • 1 x 12v Relay’s for Engine Cut off Remotely
  • 1 x Duress switch
  • 1 x Full Installation details for self install
  • 1 x Power cable with Fuse
  • Function & Package T4
  • Monitoring Scope ≤ 5M
  • Antenna Built-in GPS ceramic antenna; GSM quad-band antenna
  • LED Indicator GPS(blue), GSM(green), Power(red）
  • Operating Temp -20oC to +70oC
  • Operating Voltage 9-36VDC
  • Operating Humidity 5%~95%，non-dense
  • Internal Backup Battery 450mAh/3.7V industrial lithium polymer battery
  • Standby 60 hours / Working Time 4 Hours
  • Dimension 98(L) ×52.0 (W) ×15.0 (H) mm
  • Weight 80g.
  • GPS Specifications T4
  • GPS MTK high sensitivity GPS chip
  • Frequency L1,1575.42MHz C/A code
  • Channels 66
  • Location Accuracy <10 meters
  • Tracking Sensitivity - 165dBm
  • Acquisition Sensitivity - 148dBm
  • Location time Hot start：≤1sec(open sky)
  • Cold start：≤38sec(open sky)
